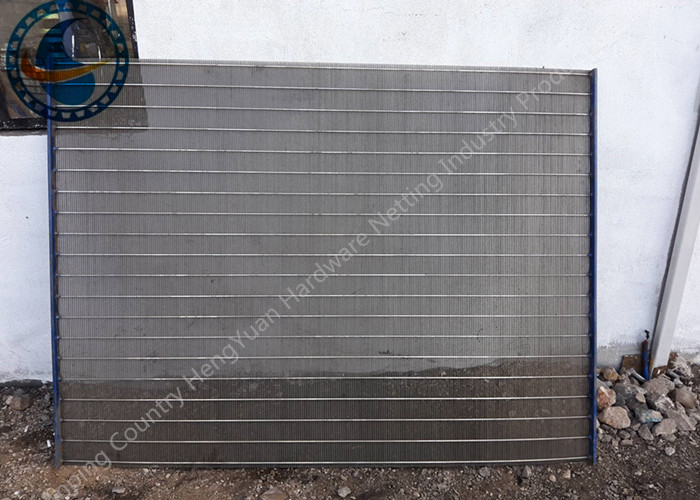

Stainless Steel Wedge Wire Screen Panels,Stainless steel sieve plate
stainless steel wedge wire circular sieve plate can be constructed using rectangular support rods or round support rods.
They are the most widely used type of wedge wire screens mainly in the mineral processing both for stationery as well as vibratory decks.
stainless steel wedge wire circular sieve plate can be designed to optimize the open area, strength and wear life for each application.
The sieve plates are either continuously or intermittently welded on the lower side of loop to provide complete rigidity to the panels thus becoming very effective in transmitting the vibrations without mechanical failures.
Advantages of stainless steel wedge wire circular sieve plate
- flatness to within tight tolerances
- no weakening of the welds, because of flattening (and no stress corrosion problems as a result)
- accurate distance between support profiles
- possibility of different support wires in one screen
- possibility of variable spacing between support wires in one screen
Usage of stainless steel wedge wire circular sieve plate
vibrating screen decking,cross flow sieves, surface water intake screen, mineral processing, fish diversion screen panel, hatchery screens, food processing, and flooring for malt kiln,germination, and grain drying.
|
Specification
(mm)
Profile wire size:
|
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 |
|
Specification
(mm) Support rods sie: |
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm |
Note: other wires and rods can be customed according to your requests |
|
Slot size:
(mm) |
0.10, 0.15, 0.20, 0.25, 0.30... 6.00mm also
achieved upon request. |
Material: |
Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.) |
Length: |
Lengths up to 4 meters.
Max size: 4000*4000mm |
| : | |
